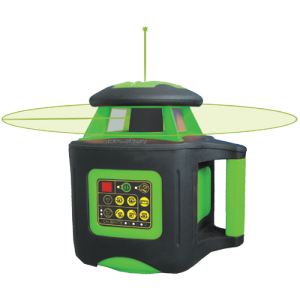

Nivel Láser Rotativo Horizontal y Vertical con Autonivelador Electrónico y Tecnología GreenBrite®
COMPRAS
+ Pase el ratón por encima para acercar la imagen
+ Pase el ratón por encima para acercar la imagen- Rayo verde (400% más visible que el rayo rojo)
- Función de nivelación dual controlada electrónicamente
- Modos de rayo láser incluyen: punto, 2 largos de línea ajustables y 2 velocidades de rotación
- Alarmas visual y auditiva cuando el láser se encuentre fuera del rango de nivelación
- Función Altura del Instrumento/Alarma de Desnivelación garantiza la precisión
Modelo 40-6545 incluye: nivel láser, adaptador de montaje vertical, montaje para pared, juego de baterías recargables NiMH, adaptador para batería 6V, control remoto con batería 9V, 2 objetivos magnéticos, 2 gafas polarizadas, manual de instrucciones con tarjeta de garantía, estuche duro para transporte
Modelo 40-6545 incluye: nivel láser, adaptador de montaje vertical, montaje para pared, juego de baterías recargables NiMH, adaptador para batería 6V, control remoto con batería 9V, 2 objetivos magnéticos, 2 gafas polarizadas, manual de instrucciones con tarjeta de garantía, estuche duro para transporte, detector, batería 9V, prensa

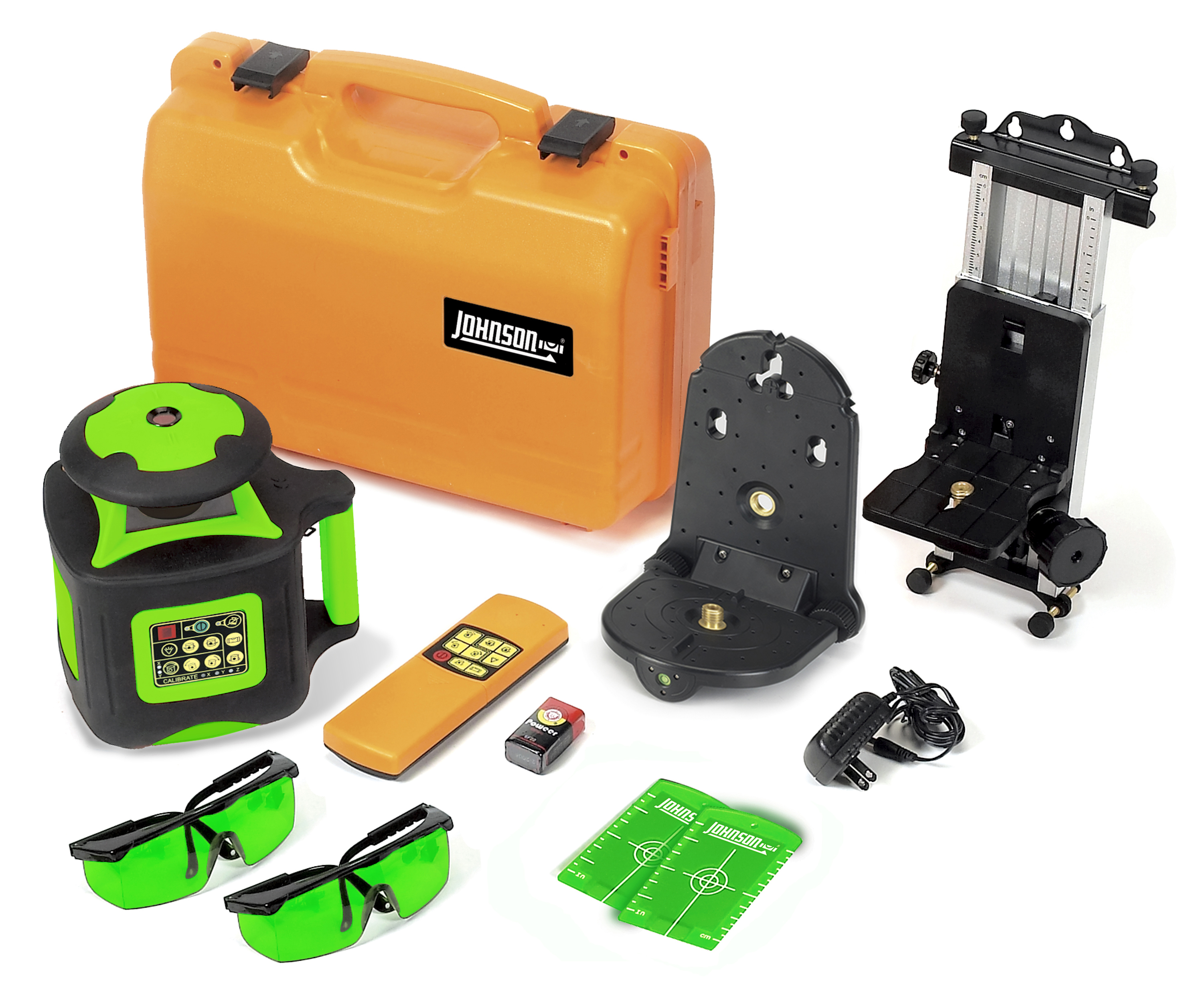

Johnson's 40-6545 Electronic Self-Leveling Horizontal & Vertical Rotary Laser Level with GreenBrite® Technology Kit Includes:
- Laser Level
- Vertical mounting adapter
- Wall/ceiling mount
- NiMH rechargeable battery pack
- 6V battery adapter
- Remote control with 9V battery
- 2 magnetic targets
- 2 tinted glasses
- Instruction manual with warranty card
- Hard-shell carrying case
Johnson's 40-6547 Electronic Self-Leveling Horizontal & Vertical Rotary Laser Level with GreenBrite® Technology Kit Includes:
- Laser Level
- Vertical mounting adapter
- Wall/ceiling mount
- One-sided laser detector with clamp
- NiMH rechargeable battery pack
- 6V battery adapter
- Remote control with 9V battery
- 2 magnetic targets
- 2 tinted glasses
- Instruction manual with warranty card
- Hard-shell carrying case
| Accuracy: | +/-1/16"/100ft. (+/-1.5mm/30m) |
|---|---|
| Auto-Leveling Range: | +/-5 degrees |
| Battery Life: | Approximately 10 hours with rechargeable battery pack; 15 hours with alkaline batteries |
| Center Screw Thread: | 5/8"-11 |
| Dimensions: | 7" x 5" x 6.25" (177 x 127 x 159mm) |
| Exterior Range: | Up to 1400` diameter (427m) with detector |
| Grade Setting: | N/A |
| Interior Range: | Up to 400` diameter (120m) depending on light conditions |
| IP Protection Class: | 66 |
| Laser Classification: | Class IIIa |
| Laser Wavelength: | 532nm +/-10nm (Green) |
| Leveling Method: | Automatic (Electronic) |
| Maximum Power Output: | <=5mW |
| Power Supply: | Rechargeable NiMH battery pack, or 6V adapter (included), 4 "C" alkaline batteries (not included) |
| Remote Range: | Up to 200` diameter (60m) |
| Rotation Speeds: | 200, 600 rpm |
| Scanning Modes: | 0, 30, 60 degrees |
| Slope: | +/-8 degrees |
| Warranty: | 3 Years |
| Weight: | 9.61lbs. (4.35kg) |
| Working Temperature: | 32F to 104F (0C to +40C) |
The 40-6545 rotary laser can be used for the following indoor applications,
- Layout of interior walls
- Check door and window heights
- Acoustical/Drop ceilings
- Layout warehouse racking
- Room additions
- Drywall installation
- Partition installation
- Squaring floor and wall tiles
- Installing sprinkler systems
- Align and plumb walls
- Level floors
- Metal stud and wood framers
- Level cabinets
- Level shelving and countertops
Johnson Level Rapid Response Center for Repair and Service
In the U.S., call 888-953-8357 from 8AM-5PM CT. In Canada, call 514-695-7221 8AM-5PM ET.
Download 40-6545 Kit High Resolution Image
Rotary Laser Level Manuals
40-6540/6545/6547 - English
40-6540/6545/6547 - French
40-6540/6545/6547 - Spanish
Other Johnson Laser Level Support
List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support
Detalles del producto
- Rayo verde (400% más visible que el rayo rojo)
- Función de nivelación dual controlada electrónicamente
- Modos de rayo láser incluyen: punto, 2 largos de línea ajustables y 2 velocidades de rotación
- Alarmas visual y auditiva cuando el láser se encuentre fuera del rango de nivelación
- Función Altura del Instrumento/Alarma de Desnivelación garantiza la precisión
Modelo 40-6545 incluye: nivel láser, adaptador de montaje vertical, montaje para pared, juego de baterías recargables NiMH, adaptador para batería 6V, control remoto con batería 9V, 2 objetivos magnéticos, 2 gafas polarizadas, manual de instrucciones con tarjeta de garantía, estuche duro para transporte
Modelo 40-6545 incluye: nivel láser, adaptador de montaje vertical, montaje para pared, juego de baterías recargables NiMH, adaptador para batería 6V, control remoto con batería 9V, 2 objetivos magnéticos, 2 gafas polarizadas, manual de instrucciones con tarjeta de garantía, estuche duro para transporte, detector, batería 9V, prensa
Johnson's 40-6545 Electronic Self-Leveling Horizontal & Vertical Rotary Laser Level with GreenBrite® Technology Kit Includes:
- Laser Level
- Vertical mounting adapter
- Wall/ceiling mount
- NiMH rechargeable battery pack
- 6V battery adapter
- Remote control with 9V battery
- 2 magnetic targets
- 2 tinted glasses
- Instruction manual with warranty card
- Hard-shell carrying case
Johnson's 40-6547 Electronic Self-Leveling Horizontal & Vertical Rotary Laser Level with GreenBrite® Technology Kit Includes:
- Laser Level
- Vertical mounting adapter
- Wall/ceiling mount
- One-sided laser detector with clamp
- NiMH rechargeable battery pack
- 6V battery adapter
- Remote control with 9V battery
- 2 magnetic targets
- 2 tinted glasses
- Instruction manual with warranty card
- Hard-shell carrying case
Especificaciones
| Accuracy: | +/-1/16"/100ft. (+/-1.5mm/30m) |
|---|---|
| Auto-Leveling Range: | +/-5 degrees |
| Battery Life: | Approximately 10 hours with rechargeable battery pack; 15 hours with alkaline batteries |
| Center Screw Thread: | 5/8"-11 |
| Dimensions: | 7" x 5" x 6.25" (177 x 127 x 159mm) |
| Exterior Range: | Up to 1400` diameter (427m) with detector |
| Grade Setting: | N/A |
| Interior Range: | Up to 400` diameter (120m) depending on light conditions |
| IP Protection Class: | 66 |
| Laser Classification: | Class IIIa |
| Laser Wavelength: | 532nm +/-10nm (Green) |
| Leveling Method: | Automatic (Electronic) |
| Maximum Power Output: | <=5mW |
| Power Supply: | Rechargeable NiMH battery pack, or 6V adapter (included), 4 "C" alkaline batteries (not included) |
| Remote Range: | Up to 200` diameter (60m) |
| Rotation Speeds: | 200, 600 rpm |
| Scanning Modes: | 0, 30, 60 degrees |
| Slope: | +/-8 degrees |
| Warranty: | 3 Years |
| Weight: | 9.61lbs. (4.35kg) |
| Working Temperature: | 32F to 104F (0C to +40C) |
Aplicación
The 40-6545 rotary laser can be used for the following indoor applications,
- Layout of interior walls
- Check door and window heights
- Acoustical/Drop ceilings
- Layout warehouse racking
- Room additions
- Drywall installation
- Partition installation
- Squaring floor and wall tiles
- Installing sprinkler systems
- Align and plumb walls
- Level floors
- Metal stud and wood framers
- Level cabinets
- Level shelving and countertops
Apoyar
Johnson Level Rapid Response Center for Repair and Service
In the U.S., call 888-953-8357 from 8AM-5PM CT. In Canada, call 514-695-7221 8AM-5PM ET.
Download 40-6545 Kit High Resolution Image
Rotary Laser Level Manuals
40-6540/6545/6547 - English
40-6540/6545/6547 - French
40-6540/6545/6547 - Spanish
Other Johnson Laser Level Support
List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support
