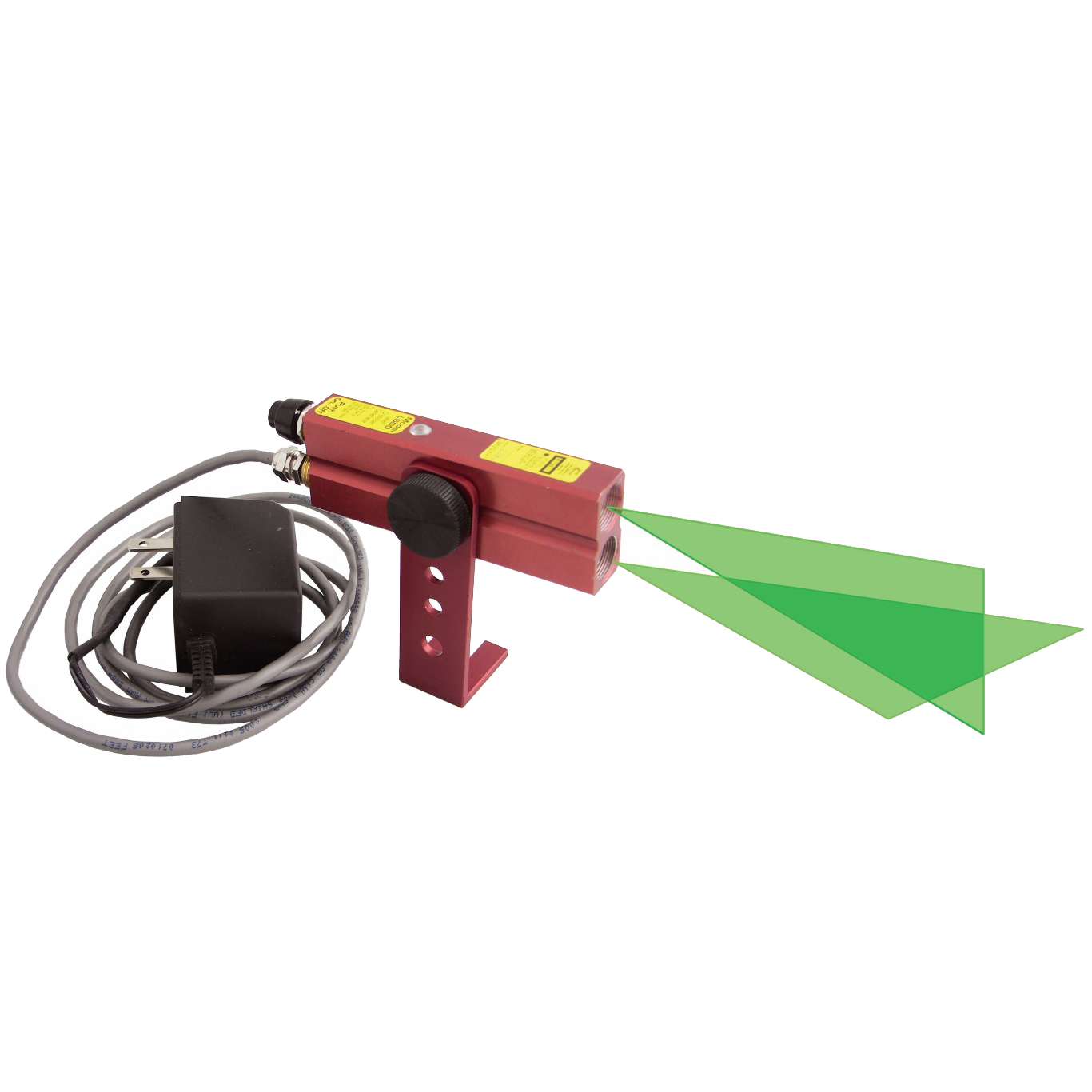

Nivel Láser Industrial de Alineación de Cruz – Verde
COMPRAS
COMPRAR REFORMADO
-
Cylindrical lens technology - Solid glass optical system draws a continuous line at any distance
-
Line fan angle - 70 degrees
-
Line widths - 1/16"
-
Push on/off switch - turn unit on and off without having to disconnect power
-
Beam on indicator - two indicators top & bottom for easy viewing
-
Hard anodized - scratch resistance housing
-
Laser diode - rated for 10,000 hours of operation or 5 years normal operating condition
+ Pase el ratón por encima para acercar la imagen- Tecnología de lente cilíndrico: sistema óptico de vidrio sólido que permite dibujar una línea continua a cualquier distancia
- Botón de encendido/apagado
- 2 indicadores Beam-on, en las partes superior e inferior, para fácil visibilidad
- Armazón sólido anodizado resistente a ralladuras y desgaste
Modelo 40-6232 incluyen: nivel láser rojo o verde, adaptador AC 110V, soporte de montaje, manual de instrucciones
40-6232 Includes > Green laser, 110V AC, mounting bracket, instruction manual with warranty card
| Laser Wavelength: | 532nm+/-10nm |
|---|---|
| Laser Classification: | Il |
| Maximum Power Output: | Less than/Equal to 1mW |
| Beam Divergance: | 70 degree standard |
| Power Supply: | 110 AC |
| Dimensions: | 4" x 0.75" x 1.375" |
| Weight: | 7.5 oz |
| IP Protection Class: | 65 |
| Warranty: | 1 Year Warranty |
The Johnson Level 40-6232 can be used for the following indoor applications; centering parts on equipment - riveters, fluid and dry good filters, positioning parts on welders, drill press alignments, pointing, positioning, aligning, site layout, crosscut and break measurements, slope, conveyors, grade, transit work.
Detalles del producto
- Tecnología de lente cilíndrico: sistema óptico de vidrio sólido que permite dibujar una línea continua a cualquier distancia
- Botón de encendido/apagado
- 2 indicadores Beam-on, en las partes superior e inferior, para fácil visibilidad
- Armazón sólido anodizado resistente a ralladuras y desgaste
Modelo 40-6232 incluyen: nivel láser rojo o verde, adaptador AC 110V, soporte de montaje, manual de instrucciones
40-6232 Includes > Green laser, 110V AC, mounting bracket, instruction manual with warranty card
Especificaciones
| Laser Wavelength: | 532nm+/-10nm |
|---|---|
| Laser Classification: | Il |
| Maximum Power Output: | Less than/Equal to 1mW |
| Beam Divergance: | 70 degree standard |
| Power Supply: | 110 AC |
| Dimensions: | 4" x 0.75" x 1.375" |
| Weight: | 7.5 oz |
| IP Protection Class: | 65 |
| Warranty: | 1 Year Warranty |
Aplicación
The Johnson Level 40-6232 can be used for the following indoor applications; centering parts on equipment - riveters, fluid and dry good filters, positioning parts on welders, drill press alignments, pointing, positioning, aligning, site layout, crosscut and break measurements, slope, conveyors, grade, transit work.
